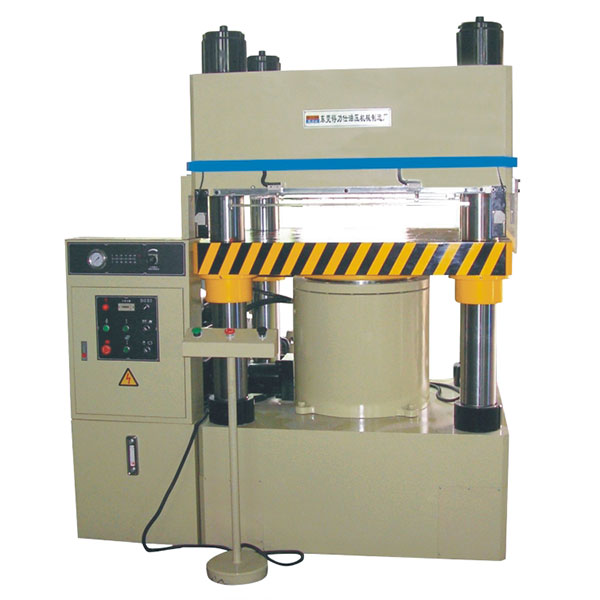

Jigsaw Puzzle Hydraulic Press
Goodsjack provides full range of up-stroke jigsaw puzzle cutting machine from 50 ton to 3000 ton. Goodsjack ‘s jigsaw puzzle cutting machine ‘s exclusively designed and featured for and only for jigsaw puzzle production, as well as plywood jigsaw puzzle DIE CUTTING.
1. Fast speed, high precision, easy operation;
2. With six side protection;
3. Compact and good appearance.
Goodsjack‘s jigsaw puzzle machine features:
Up-stroke acting type
Hydraulic system mounted at the rear side
Two-hands press start button
E-stop button
Safety light curtains
Safety mechanical stopper
Proximity limitation control
Pressure regulator
Portable operation console
Pressure gauge
Stainless(304) steel slide rails for cutting die to slide IN & OUT
Flat bed table and slider
Hydraulic oil chiller

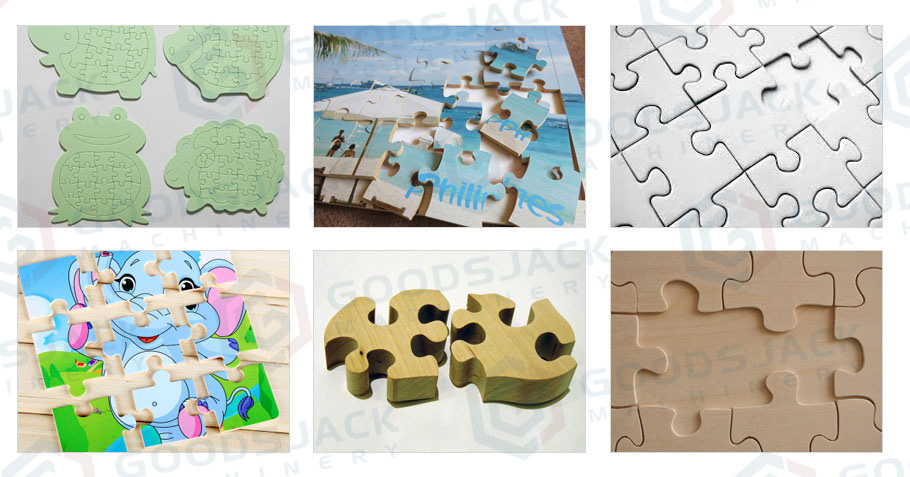

1. Puching & Shaping & Cutting in 4mm, 5mm, 6mm thick basswood/birch wooden/plywood jigsaw puzzles die cutting.
2. Plastic trimming and glue.
Except for Plywood / Basswood Die Cutting & wooden Jigsaw Puzzle cutting, the Jigsaw Puzzle machine can be also used in:
1 Comprehensively used in punch riveting in the line of Apparel, Jeans, Overcoat, or other similar processing work.
2.Overall cutitng of plastic products, forming of plastic material, like blanking, stretching and embossing.
of plates, as well as pressing of plastic and powder products, and other users, It is mostly used in auto and motorcycle fitting sectors.
3. Decorative film cutting for car.
| Model | Units | Specifications | |||
| DPT-300 | DPT-500 | DPT-1000 | |||
| Main cylinder capacity | Ton | 300 | 500 | 1000 | |
| System pressure | Mpa | 240 | 250 | 250 | |
| Main cylinder stroke | mm | 150(185) | 150(185) | 150 | |
| Open height | mm | 165(200) | 165(200) | 170 | |
| Height of fixed working table | mm | 1099(1114) | 1284(1319) | 1700 | |
| Size of working table | L-R | mm | 800 | 900 | 1100 |
| F-B | mm | 900 | 1050 | 1440 | |
| Speeds of main cylinder | Fast forward | mm/s | 135 | 135 | 110 |
| Working | mm/s | 6 | 4 | 43 | |
| Fast backward | mm/s | 125 | 125 | 100 | |
| Over all dimension | L-R | mm | 1580 | 1600 | 2200 |
| F-B | mm | 1705 | 1865 | 1900 | |
| H | mm | 1855(1890) | 2145(2180) | 2930 | |
| Main motor power | kw | 11 | 15 | 30 | |
| Weight(Approx) | kg | 7600(7800) | 9100(9500) | 11670 | |
Hydraulic Press Machine with Strictest Quality Certificate Standards
GoodsJakc/Delishi is an ISO 9001,CE,SGS and Quality Permit certified company. At GoodsJakc/Delish, everyone accepts that quality is the life of our company. This concept of value rooted deeply in everyone’s mind and has become our commitment to our clients. Every employee takes pride in their work to hold the strictest standard of quality, and to make every hydraulic press machine built with tough quality standards to ensure years of maintenance-free and reliable operation.
