    Frame-type Hydraulic Press

    Introduction：
    The frame hydraulic press was well suitable for pressing and forming of coin press, watch clock parts, spectacle parts, tableware, photo frame, metal ornament, lock parts, auto parts and hardware etc.

    GET A QUOTE

    Frame-type Hydraulic Press

    Servo Frame Hydraulic-Press





    1. Adopt the whole welded frame structure, made of high quality integral steel plate ensures high rigidity under high pressure;

    2. Pressing force stroke of movable working table and time of pressing force holding can be easily adjusted according to the need of applications;

    3. With different models, upper and lower knocking-our workpiece after pressing and shallow drawing;

    4. Short pressing force building time allows higher production efficiency;

    5. Lower oil tank design makes more compact machine overall dimension and easier clean of the tank;

    6. With high operating reliability and less trouble as result of more than ten years improvement.







    1. Stamping , forming , shallow drawing , die spotting , molding and blanking etc. of metal or none metal parts;

    2. Well suitable for pressing and forming of watch clock parts , spectacle parts , tableware , photo frame , metal ornament , lock parts , auto parts and hardware etc.

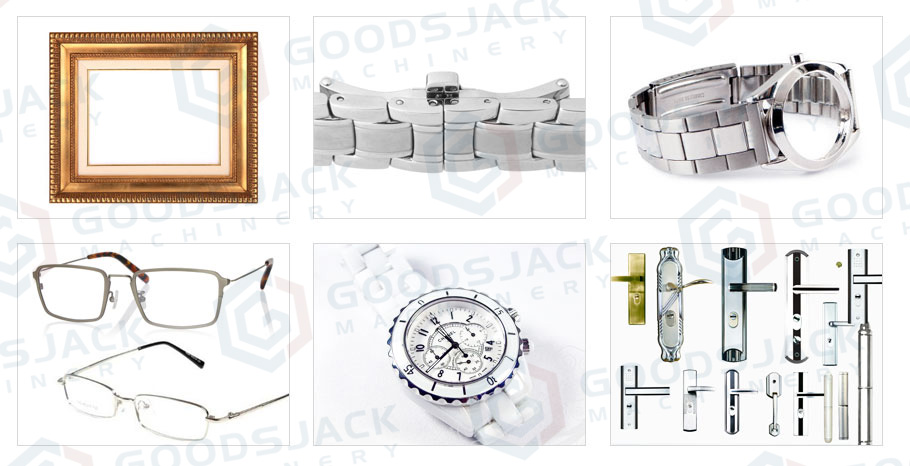

    metal hydraulic-forming products







    Model Units Specifications
    DK-100 DK-150 DK-200 DK-300 DK-500 DK-1000 DK-1500 DK-2000
    Main cylinder capacity ton 100 150 200 300 500 1000 1500 2000
    System pressure(Max) Mpa 22 22 22 24 25 25 25 25
    Main cylinder stroke mm 110 110 150 150 150 150 160 160
    Open height mm 360 360 380 380 450 500 650 700
    Height of working table to ground mm 970 970 1020 1150 1250 1300 1700 2000
    Approaching speed of working table mm/s 180 180 135 135 135 90 90 80
    Returning speed of working table mm/s 150 150 100 100 100 100 90 75
    Size of working table L-R mm 420 420 520 580 740 880 1100 1350
    F-B mm 420 420 500 540 640 860 1100 1350
    Over all dimension L-R mm 925 925 1150 1200 1400 1540 1680 2400
    F-B mm 750 750 910 950 1000 1200 1400 2600
    H mm 1650 1650 1840 1910 2080 2870 3100 3300
    Main motor power kw 4 5.5 5.5 7.5 15 18.5 18.5 30
    Weight(Approx) kg 1600 1800 2400 3300 6500 16000 23000 35000
