    Introduction：
    Frame Guide Rail Deep Drawing Press
    Hydraulic 35- 500 Ton Capacity;
    Applicable to tableware,kitchenware,lighting radiators and other metal products,deep drawing molding.

    GET A QUOTE

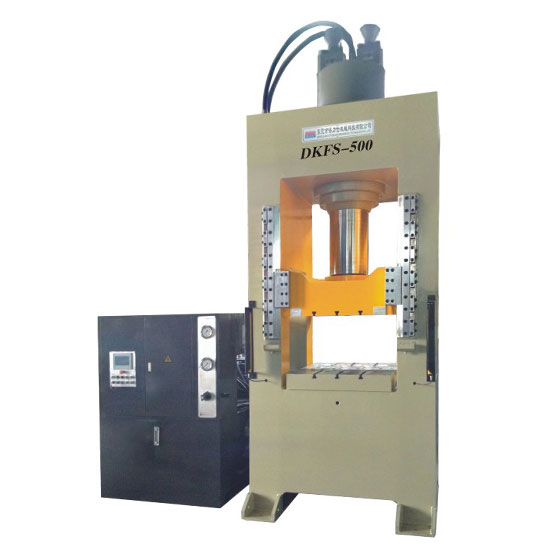

    Servo Hydraulic Deep Draw Machine

    servo deep drawing press machine



    Frame Guide Rail Deep Drawing Press, Applicable to tableware,kitchenware,lighting radiators and other metal products,deep drawing molding.

    Hydraulic Deep Drawing Press Samples



    Model Units Specifications
    DKFS-50 DKFS-75 DKFS-120 DKFS-150 DKFS-220 DKFS-220L DKFS-275 DKFS-350 DKFS-350L DKFS-500 DKFS-500L DKFS-600
    master
    cylinder     		rated
    capacity     		ton 35 50 85 100 160 160 200 260 260 350 350 420
    stroke mm 350 450 450 560 560 560 560 560 560 600 600 700
    fast down
    speed     		mm/s 210 220 220 220 230 230 220 190 190 230 230 210
    coining
    speed     		mm/s 20-40 20-40 20-40 21 20-40 22-40 20-40 15-30 15-30 15-30 15-30 14-28
    return
    speed     		mm/s 190 220 220 180 220 220 210 165 165 170 170 190
    system pressure bar 220 220 220 240 240 240 240 230 230 240 240 230
    cylinder
    pressure side     		blank holder
    force     		ton 15 25 35 50 60 60 75 90 90 150 150 180
    stroke mm 175 200 200 260 260 260 260 260 260 300 300 350
    unloading
    cylinder     		ejecting force ton 2 3 5 5 5 5 5 10 10 10 10 10
    stroke mm 150 180 180 200 200 200 200 220 220 250 250 300
    open height(slide to bolster) mm 600 730 730 750 900 1000 900 900 900 1000 1200 1500
    working table
    size     		L-R mm 500 500 600 600 710 900 800 900 1100 1050 1250 1400
    F-B mm 550 600 600 800 870 1100 900 1000 1250 1200 1500 1600
    bolster height
    		mm 850 950 1000 1000 1080 1100 1100 1150 1150 1350 1350 1500
    main motor power KW 8.6 8.6 16 24 35 35 35 37 37 55 55 55
    over all
    dimension     		L-R mm 1350 1400 1420 1430 1750 1900 1800 3020 3250 3310 3510 3700
    F-B mm 1530 1580 1680 1880 2200 2530 2250 2200 2200 2200 2200 2300
    H mm 2680 3080 3100 3120 3805 3955 3830 3980 3980 4360 4660 5150
